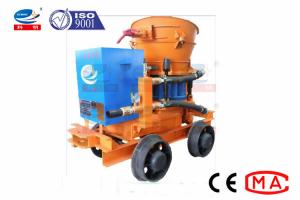

Convenient Operation Concrete Shotcrete Machine Diesel Engine Driven

Brand Name : KEMING

Model Number : PC5I

Certification : CE,MA

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Per Month

Delivery Time : 10~20 Work Day

Packaging Details : Export Wooden Case

Capacity : 5~5.5m3/h

Pressure : 0.6Mpa

Max aggregate : 20mm

Main power : 5.5kW

Horz. distance : 200m

Vert. distance : 40m

Contact Now

Convenient Operation Concrete Shotcrete Machine Diesel Engine Driven

Shotcrete Machine Parameters:

Conveying dist. max.
100/30m
Suitable mixture ratio
cement/sand and gravel=1:3~5
Suitable water and cement ratio
>0.20
Aggregate size max.
φ20mm
Conveying pipe ID.
φ51mm
Operating pressure
0.5Mpa
Air consumption
8 m3/min
Material feeding height
1.1m
Rotor rotation speed
11r/min
Motor type
YBK2-132M-6
Motor power
5.5kw
Motor rotation rate
960r/min
Voltage
380v or 660v
Machine gauge
600mm (customized)
Dimensions(Length×width×height)
1520×820×1280mm
Total weight
800kg

Shotcrete Machine Features:

1. PC5I Series Dry Shotcrete Machine have diesel engine (PZ-3D,PZ-5D,PZ-7D,PZ-9D), electric motor (PZ-3,PZ-5,PC5I,PZ-7,PZ-9) and pneumatic motor (PZ-3A,PZ-5A,PZ-7A,PZ-9A) etc.

2. PC5I Explosion proof Dry Shotcrete Machine is consisted of driving device, rotor assembly, air system, concrete spraying system, explosion-proof motor etc.

3. KPZ Series Dry Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

Shotcrete Machine Application:

1. PC5I Dry Concrete Shotcrete Machine can be used for dry or half wet concrete spray construction.

2. PC5I Dry Concrete Shotcrete Machine is widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.
