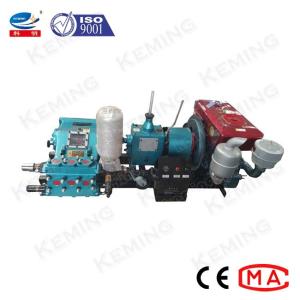

Coal Mining 150L/Min 7Mpa 18hp Diesel Slurry Pumps

Product Categories
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Coal Mining 150L/Min 7Mpa 18hp Diesel Slurry Pumps

Brand Name : KEMING

Model Number : KBW-150D

Certification : CE

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 100 Sets/Per Month

Delivery Time : 5~8 Work Days

Packaging Details : Export Wooden Packing

Capacity : 32~150L/min

Pressure : 1.8~7Mpa

Diesel engine : 18hp

Option : Diesel/Electric

Contact Now

KBW150 Diesel Slurry Pumps Industrial Mud Pumps Stainless Steel Screw Pumps

Mud Pump Application:

1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Exploration: Coal mining exploration, Ore exploration;

Mud Pump Features:

1. KBW-150D mud pump is horizontal triplex reciprocating single-acting piston pump.

2. Eight gear shift to adjust the flow, large output capacity, simple operation.

3. High quality pump parts, less energy consumption, less wearing parts, long service life.

4. Flexible manipulation, easy dismantlement and move.

Mud Pump Parameters:

Model
KLW-150D mud slurry pump
Pump type
Horizontal type
Function
Single acting
Cylinder number
3
Cylinder diameter
70mm
Piston stroke
70mm
Input speed
1500 r/min
Max. suction speed
2.5m
Suction pipe ID.
50mm
Discharge pipe ID.
32mm
Diesel Power
18 hp
Weight
750kg
Dimensions (L×W×H)
1770×1130×1220 mm
Stroke frequency, Output, Pressure
Handle lever position
High 4
High 3
High 2
High 1
Low 4
Low 3
Low 2
Low 1
Stroke frequency
(min-1)
222
130
86
57
183
107
71
47
Output
(L/min)
150
90
58
38
125
72
47
32
Pressure
(MPa)
1.8
3.2
4.8
7.0
2.3
4.0
6.0
7.0

Coal Mining 150L/Min 7Mpa 18hp Diesel Slurry Pumps
