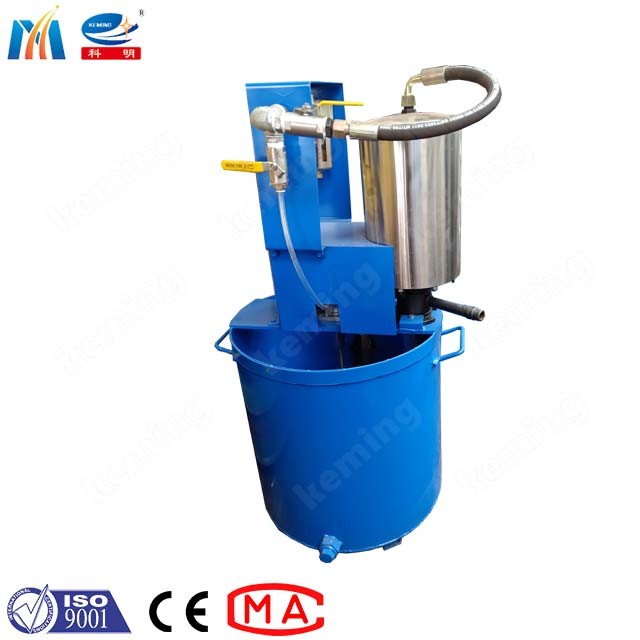

ZBQ-25/2 Air Driven Grout Pump Cement Slurry Pumping And Grouting With Mixing Blade
Products introduction:
The air driven grout pump is mainly composed of: grouting pump, agitator, mixing barrel, inlet pressure gauge, slurry outlet slurry pressure gauge, special-shaped pipe fittings, regulating valve, quick connector, lubricator and other auxiliary components.
The compressed air enters the upper chamber of the cylinder through the air inlet, and the high-pressure gas acts on the upper end of the piston through the air passage to form a closed high-pressure chamber, which pushes the piston to move, and the gas in the lower chamber of the cylinder is discharged through the exhaust hole. When the piston runs to a certain stroke, the gas pushes the sliding plug to move, the direction of the air passage changes, the gas enters the lower chamber of the cylinder through the air passage, and pushes the piston to return, thereby realizing the continuous movement of the piston. Because the cylinder piston rod and the slurry cylinder piston rod share the same rod, the slurry suction and discharge function of the slurry cylinder is realized.
1. This pneumatic grouting pump is a lightweight and high-performance equipment specially developed by our company for sealing and grouting. It uses compressed air as the only power source, the core pneumatic pump adopts advanced built-in sliding automatic reversing design, the slurry cylinder is a unique built-in differential double-acting piston structure, and is equipped with a powerful pneumatic mixer. Air-operated grouting pump with superior weight ratio.
2. The product is novel and unique in design, beautiful in appearance, particularly compact in structure, small in size, light in weight, easy to use, easy to carry, easy to disassemble and maintain, and is especially suitable for sealing and grouting with a large range of mobility in coal mines.
Specification:
| item | unit | parameter |
| air pressure | MPa | 0.2~0.63 |
| discharge slurry pressure | MPa | 0~5.5 |
| discharge slurry capacity | L /min | 0~30 |
| slurry cylinder diameter | mm | 50 |
| piston stroke | mm | 97 |
| air consumption | m³/min | ≤2 |
| noise sound pressure level | dB(A) | ≤85 |
| volume efficiency | / | 90% |
| whole machine weight | kg | 50 |
| dimension | mm | 720×710×1050(±20) |
| Applicable media | | cement slurry,emulsion,water,oil |
Certification:
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of
Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Company introduction:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility:
Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.It is suggested to place online order with a Trade Assurance (Alibaba) to get full protection for this order.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
